TaiJia TDS-100F1 ultrasonic flow meter,fixed ultrasonic flow meter ,wall mounted ultrasonic flow meter

1.1 Preface of  wall mounted ultrasonic flow meter

TDS-100F is a fixed mounted ultrasonic flow meter, and can operate with all our instruments transducer. Their electronic enclosures are rated as IP65,thus, can be installed for both indoor and outdoor.

1.2.Features of wall mounted ultrasonic flow meter

1.Better than 1% accuracy2.0.2% of repeatability 3.2x20 English letters LCD display4.4x4 key tactile-feedback membrane keypad 5.85~264VAC or 24VDC power supply 6.Pipe diameters from 15mm to 6000mm 7.Operate with clamp on, insertion and flow-cell transducer  8.Five channel analogue 4-20mA input. (version 7) 9.One channel programmable 4-20mA output 10.Two channel programmable digital out (isolated OCT and Relay)11.Frequency output 12.IP65

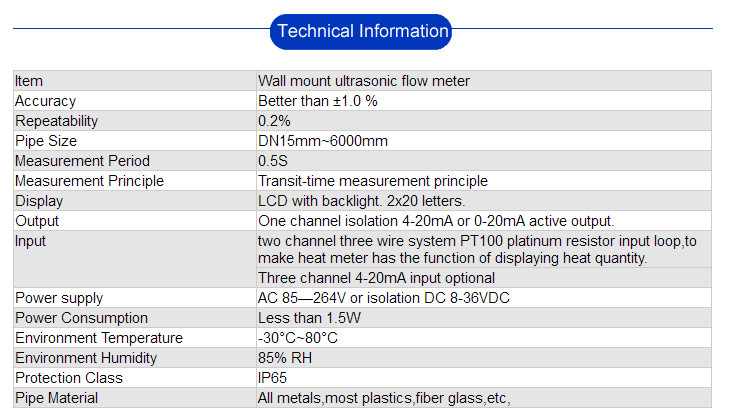

1.3 Specification of wall mounted ultrasonic flow meter

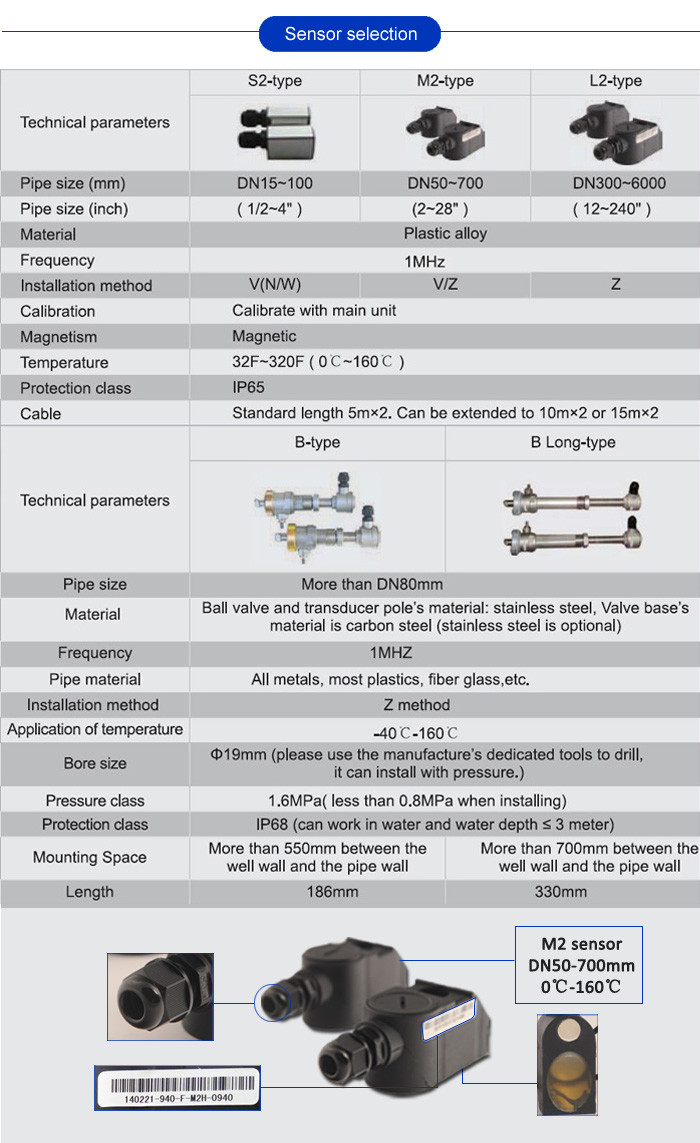

1.4.Transducer of wall mounted ultrasonic flow meter

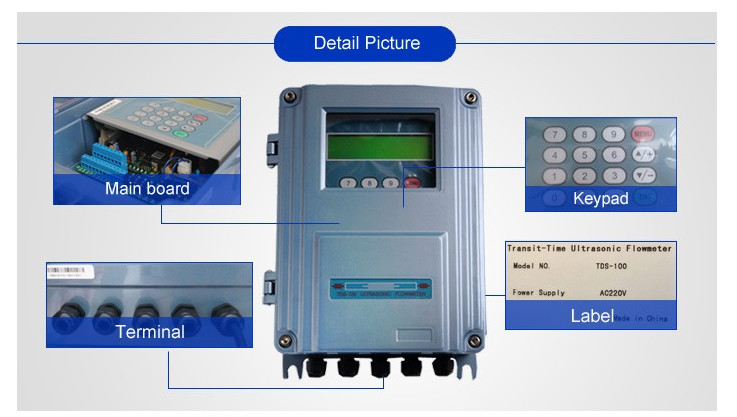

1.4.Product Details of wall mounted ultrasonic flow meter

1.5.Accessories of wall mounted ultrasonic flow meter
1.6 Factory Picture1.7 Warranty1.    We offer 12 Month's Warranty on all product ,free of charge ,but the user should be responsible for one -way transportation fee from the customer to the factory.2.   We offer instrument installtion for customer,and the charges will be made according the cost ,for any hardware failure of the instrument ,we recommend customer send back the instrument to us for service,due to the fact that the instrument is made of microprocessors and it will be difficult to perform field maintenance,Before sending back the instrument ,please try to contact us first to make sure what the problem is. for other operational problem.please contact our service department by telephone,fax,or email and internet ,in the most cases,the problem should be solved immediately .Contact with us
