Electromanetic flow meter conveter，electromagnetic flow transmitter

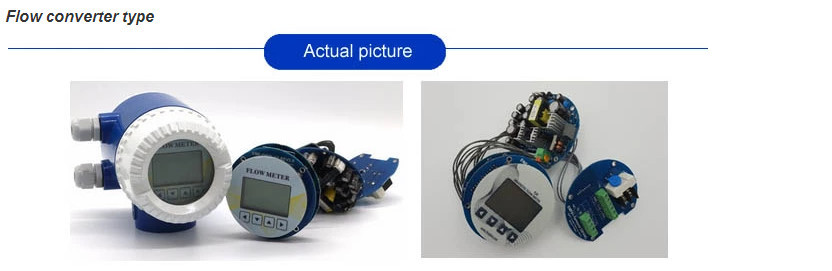

1.Intoduction of Electromanetic flow meter conveterElectronic flow transmitter is parts of electromagnetic flow meter.According to the size of the sensor, we offer four kinds of transmitter housing, As shown in the figure below, please note: the PCB board, software and menus and functions are be the same, only the size of housing and shape of the housing is different.

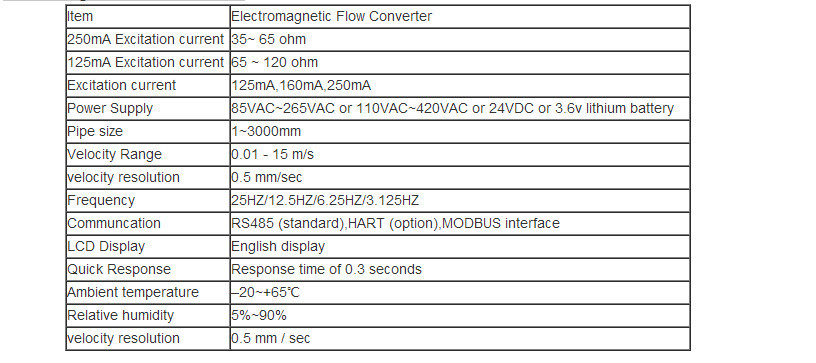

2. Technical information of Electromagnetic Flow Converter
3. Electromagnetic Flow Converter Suitable to Size of the (mm）
1，2，3、6、8，10、15、20、25、32、40、50、65、80、100、125、150、200、250、300、350、400、450、500、600、650，700、800、900、1000、1100，1200、1300，1400、1500，1600、1700，1800、2000、2200、2400、2600、2800、30004. Power Supply of Electromagnetic Flow ConverterPower supply ：85VAC --- 265VAC or or 110VAC to 420VAC or 24VDC or 3.6v lithium battery5. Details show of the Electromagnetic Flow Converter
6.Dimension of Electromagnetic Flow Converter
7 .Shipment of Electromagnetic Flow Converter
8 .Contact with us
