Tmeasurement TM-8812 thickness gauge Thickness gauge match with flow meter

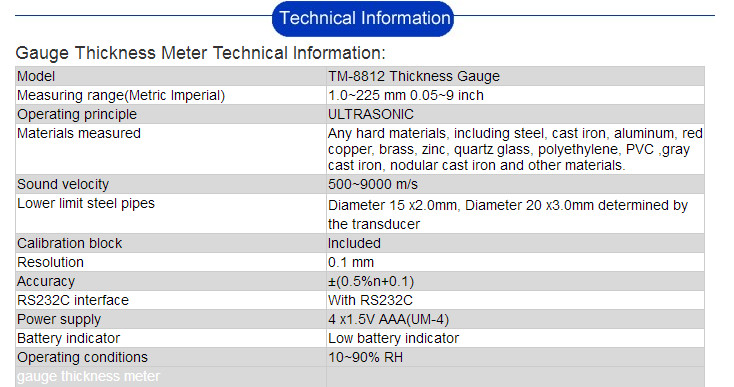

1.Features of TM-8812 thickness gauge 1.Model:TM88122. Measuring range (metric/imperial): 1.2-225mm,0.05-9inch3. Operating principle: ULTRASONIC4. Sound velocity: 500-9000m/s5. Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer6. Calibration block: included7. Resolution: 0.1mm8. Accuracy: ±(0.5%n+0.1)9. RS232C interface: with RS232C 10. Power supply: 4x1.5V AAA (UM-4)battery11. Battery indicator: low battery indicator12. Operating conditions:0-+45℃(32℉-104℉),≤90%RH13. Dimensions: 120x62x30mm14. Weight: 164g (not including battery)2.Technical Information of TM-8812 thickness gauge
3.Details show of TM-8812 thickness gauge
4. Match with ultrasonic flow meter for application
5. Accessories of TM-8812 thickness gauge
6. Related product
Contact with us
